Line- and distribution amplifiers at a glance

Advantages, properties and details

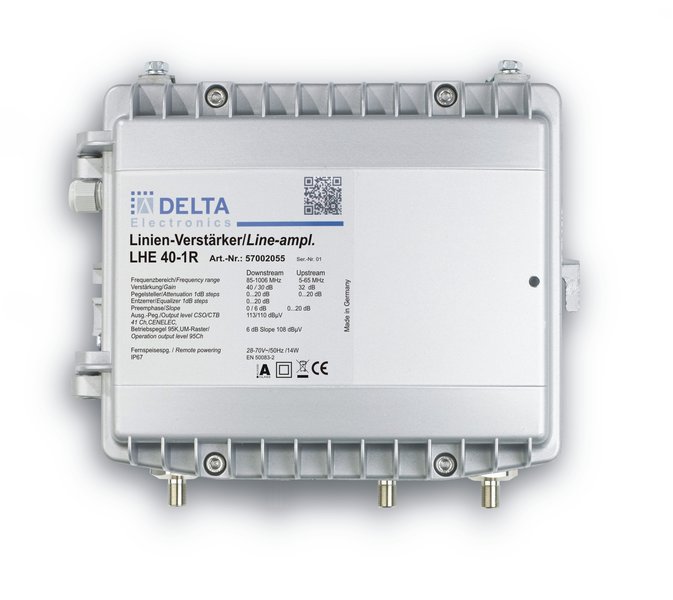

Line amplifiers 1 GHz
  • 1 GHz line amplifier
  • Return path or modular return path on board – depending on the type of amplifier
  • High output level, low noise
  • LHD 41: IDS – Ingress Detection Switch and FOSTRA-F compatible
  • Remote powering 10A depending on amplifier type
  • Protection class IP 65
Art. No.Article nameItem descriptionPDF
57003912LHE 1040 RP-65Line Extender, remote powering, 65 MHz, adjustable with pads
57004203LHE 1040 RP-85Line Extender, remote powering, 85 MHz, adjustable with pads
on requestLHE 1040 RP-20Line Extender, remote powering, 204 MHz, adjustable with pads
Line amplifiers 1.2 GHz
  • 1.2 GHz line amplifier
  • Integrated flexible return path amplifier for extension of return way up to 204 MHz
  • High output level, low noise
  • FOSTRA-F compatible
  • IDS – Ingress Detection Switch (partly)
  • Remote powering 10A depending on amplifier type
  • Protection class IP 65
  • Classic-Line: with Gallium Arsenide final stages (GaAs) for high output levels with lowest power consumption
  • Premium-Line: with Gallium Nitride final stages (GaN) for highest requirements
Art. No.Article nameItem descriptionPDF
57004367LHD 43 GA ECOLine extender local powering, 1.2 GHz, GaAs, Diplexer modular, ECO-Version
5700xxxxLHD 43-R GA ECOLine extender remote powering, 1.2 GHz, GaAs, Diplexer modular, ECO-Version
57004420LHD 43-1 GA ECOLine extender local powering, 1.2 GHz, GaAs, Line-Out, Diplexer modular, ECO-Version
57004447LHD 43-1 R GA ECOLine extender remote powering, 1.2 GHz, GaAs, Line-Out, Diplexer modular, ECO-Version
57003761LHD 32-1 R GA 85Line extender remote powerung, 1.2 GHz, GaAs, Line-Out
57002961LHD 43 R GA 65Line Extender remote powering, 1.2 GHz, GaAs, incl. 65MHz diplexer
57002962LHD 43 R GA 85Line Extender remote powering, 1.2 GHz, GaAs, incl. 85MHz diplexer
57003162LHD 44 R GN 65Line Extender remote powering, 1.2 GHz, GaN, incl. 65MHz diplexer
57003163LHD 44 R GN 85Line Extender remote powering, 1.2 GHz, GaN, incl. 85MHz diplexer
Line amplifiers 1.8 GHz
  • 1.8 GHz forward path
  • Up to 684 MHz return path
  • High output level, low noise
  • Three split Diplex Filter, switchable via remote
  • Display with push buttons, local wireless interface and remote alignment option
  • FOSTRA-F compatible
  • LED status indication
  • AGC and/or ALSC option
  • Auto US adjustment
  • Remote Ingress Detection Switch
  • Remote power supply with PFC (Power Factor Correction)
  • Remote powering 10A
  • ECO mode - Power saving
  • JXP port for cable simulator and slope correction
  • Input bypass port option
  • Output splitter option
  • Street cabinet and strand mount
  • Surge protection: 6KV
  • Protection class IP 65
Art. No.Article nameItem DescriptionPDF
57005377LHD 1842 RLine amplifier remotely powered 1.8 GHz, switchable diplexers, ECO mode
57004632LHD 1848 R GVGround amplifier, basic unit
57004535LHD 1850 R EVEnd amplifier, basic unit

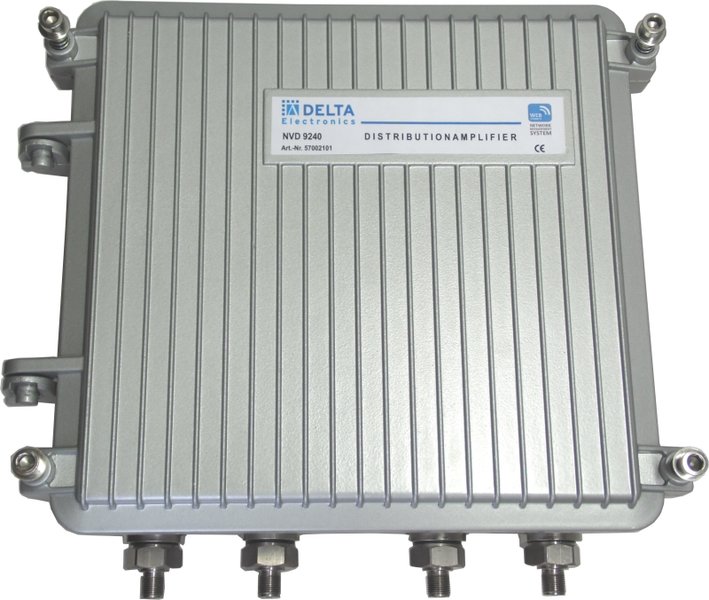

Network amplifiers 1.2 GHz
  • 1.2 GHz network amplifier
  • 2 active outputs available
  • Integrated flexible return path amplifier for extension of return way up to 204 MHz
  • High output level, low noise
  • FOSTRA-F compatible
  • IDS – Ingress Detection Switch
  • Remote powering 10A depending on amplifier type
  • Protection class IP 65
  • Classic-Line: with Gallium Arsenide final stages (GaAs) for high output levels with lowest power consumption
  • Premium-Line: with Gallium Nitride final stages (GaN) for highest requirements
Art. No.Article nameItem descriptionPDF
57002980NVD 9243 GA1.2 GHz distr. amplifier, diplexer 65/85/204 MHz, GaAs
57002812NDV 9243 R GA 1.2 GHz destr. amplifier, remote powered, 65/85/204 MHz, GaAs
57003164NVD 9243 R GA 651,2 GHz distr. amplifier, remote powered, diplexer 65 MHz, GaAs
57003165NVD 9243 R GA 851.2 GHz distr. amplifier, remote powered, diplexer 85 MHz, GaAs
57003055NVD 9244 GN1.2 GHz distr. amplifier, diplexer 65/85/204 MHz, GaN
57003056NVD 9244 R GN1.2 GHz distr. amplifier, remote powered, diplexer 65/85/204 MHz, GaN
57003166NVD 9244 R GN 651.2 GHz distr. amplifier, remote powered, diplexer 65 MHz, GaN
57003167NVD 9244 R GN 851.2 GHz distr. amplifier, remote powered, diplexer 85 MHz, GaN
